Shut Off Valves ( Manual - 3/2 Standard - 2/2 Optional)
Particulate and Coalescing Filters
Regulators Pilot Regulators and Manifold Regulators (02 and 14 Series)
Particulate Filter / Regulators and Coalescing Filter / Regulators
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

Air Preparation - Series 14
FRL - Filters (Particulate & Coalescing) - Regulators - Filter/Regulators - Lubricators - Shut-Off Valves - Quick Exhaust Valves - 1/8, 1/4

The Numatics Modular Flexiblok FRL products are available in four sizes. Our 14, 22, 32 and 42 series range in port size from 1/8 to 1 inch with flow rates from 30 to 300 scfm. Our 22, 32 and 42 series are cast from high strength lightweight aluminum making them perfect for applications such as robotic arms where total weight is at a premium. The Flexiblok advantage offers a square head design with integral mounting holes simplifying mounting by eliminating costly brackets. Direct connect modularity mounts one component to the next with a single "O" Ring seal and two button head screws eliminating adapters and therefore cost and potential leak points.

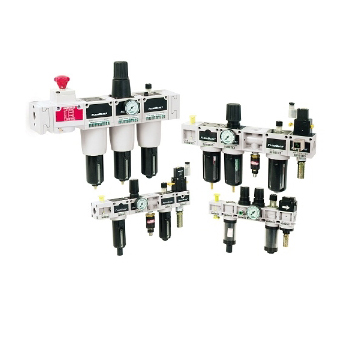

Numatics FlexiBlok FRL 14 / 22 / 32 / 42 Series Standard Products

1）Shut Off Valves ( Manual - 3/2 Standard - 2/2 Optional)
2）Particulate and Coalescing Filters
3）Regulators Pilot Regulators and Manifold Regulators (02 and 14 Series)
4）Particulate Filter / Regulators and Coalescing Filter / Regulators
5）Lubricators
6）Solenoid Soft Start Quick Exhaust and Solenoid Quick Exhaust Valves
7）Pilot Operated Quick Exhaust Valves (Internal / External Pilot)
8）Diverter Blocks and Diverter Plates
Numatics FlexiBlok FRL 14 / 22 / 32 / 42 Series Options & Features

1）Stockblok Single model number assemblies – FRLs in standard combinations
2）5 μ Particulate Element Standard / 40 μ Optional
3）0.3 μ Coalescing Element Standard / 0.7 μ, 0.01 μ Optional
4）Coalescing Dual Support Core Standard – Pleated Pre-filter Optional
5）Coalescing Delta P Slide Indicator Standard
6）Poly Carbonate Bowl and Guard Standard
7）Metal Bowl w/Sight Glass and Circle Vision Bowls Optional
8）Plastic Manual Drain Standard
9）Auto Float Drain
10）External Pulse Drain
11）Metal, Flex and Lever Manual Drains Optional
12）Regulator Pressure Ranges 0 – 125 PSI Standard, 0 – 60 and 0 – 30 PSI Optional
13）Pressure Sensors and Switches - See DPS280 or FRL Accessories section
