ASCO 美國阿斯卡

ASCO選型 numatics-series-MCR

Bore sizes include: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm
304 series stainless steel barrel
Operating pressure up to 7 bar, (100 psi.)
Ambient temperature range, -20oC to + 60oC (–4oF to +140oF)
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

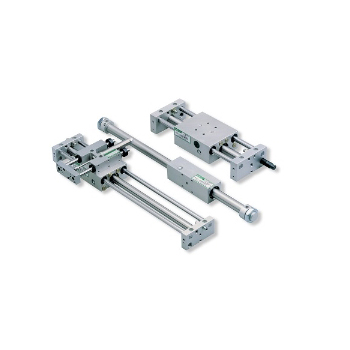

Cylinders & Actuators - Magnetically Coupled Rodless - Numatics Series MCR
Double Acting - Guide and Non-Guided - 12 to 40mm

The MCR Series cylinder consists of a piston and a carriage, which are coupled together using rare earth magnets. When the cylinder is pressurized from one end, the piston will travel the length of the tube, which in turn moves the carriage. Pressurizing the other side the carriage will travel back the length of the tube. They are available in various bore sizes and coupling strengths.

Standard Specifications:

1）Bore sizes include: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm
2）304 series stainless steel barrel
3）Operating pressure up to 7 bar, (100 psi.)
4）Ambient temperature range, -20oC to + 60oC (–4oF to +140oF)
5）Medium, filtered air, with or without lubrication, & low pressure hydraulic
6）Standard stroke lengths for non-guided (MC1, MC2) up to 2540mm(100") for guided (MC3, MC4, MC5) up to 1524mm (60")
7）Non-rotating linear travel (MC3, MC4, MC5)
8）Cushions are standard on the non-guided series for load deceleration
9）Operating speeds up to 1 m/sec (3.28ft./sec)

Features:

1）Guided series end plate design allows easy shock absorber installation. Several shock options available for optimum load deceleration.
2）Numate mounting features available (MC3, MC4, MC5)
3）Externally guided option (MC3, MC4, MC5)
