ASCO選型 numatics-series-vdma

Bore sizes from 32 mm through 250 mm
Nominal pressure rating is 10 bar (150 psi)
Magnetic piston standard
Seals made from Buna-N and Polyurethane
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

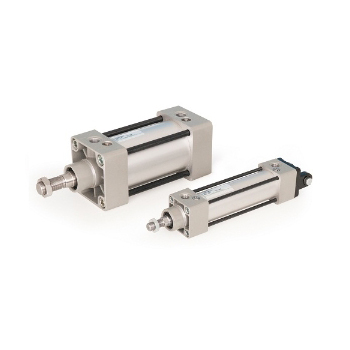

Cylinders & Actuators - ISO 6431 and VDMA 24562 with Tie Rod - Numatics Series ISO VDMA
Double Acting - Tie Rod - 32 to 200mm

The ISO/VDMA Series is an aluminum body air cylinder line that is designed to meet all your international cylinder requirements. In fact, our ISO/VDMA Series cylinders are designed to meet the requirements of ISO 6431 (International) and VDMA 24562 (Germany). The combination of lightweight aluminum construction and proven reliability makes our ISO/VDMA Series the Superior Interchangeable metric, international standard air cylinder line.

Standard Specifications:

1）Bore sizes from 32 mm through 250 mm
2）Nominal pressure rating is 10 bar (150 psi)
3）Magnetic piston standard
4）Double acting
5）Single and double rod end
6）Adjustable cushions
7）Seals made from Buna-N and Polyurethane
8）Non-lube added service

Features:

1）Cylinder tube: aluminum extruded profile with wear-free "Hard-Coat" (HV > 450), long service life, corrosion resistant, low friction coefficients.
2）High strength steel (100,000 psi minimum yield) piston rod has a ground, polished and hard chrome plated surface providing maximum life of bushing and seals.
3）Tie rods are 100,000 psi minimum yield steel for maximum holding power. Tie rod threads are rolled for strength and engagement.
4）Cylinder end caps: aluminum die-cast
5）Steel parts: anodized
