Competitive interchangeability with NFPA Aluminum cylinders.
Solution to specific applications where piston rotation is not acceptable.
Achieve longer cylinder life with a larger wear band than competitive cylinders.
Easy fitting capabilities with a wide range of standard fittings and rod ends.
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

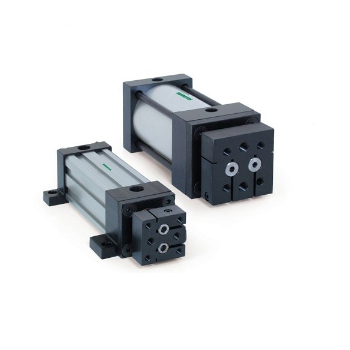

Cylinders & Actuators - Non-Rotating NFPA - Numatics Series F
Double Acting - with Cushioning - 1 1/2 to 4

The F Series is a Non-Rotating NFPA Interchangeable pneumatic cylinder line that provides the solution to specific applications where piston rotation is not acceptable. Our innovative dual rod design provides precision positioning and linear movement. This makes the F Series ideal for a multitude of high-tech applications.

Standard Specifications:

1）Meets NFPA specifications
2）Bore sizes from 1-1/2 " through 4"
3）Piston rod diameters from 5/16" through 3/4"
4）Nominal pressure rating is 250 psi air
5）Standard temperature -10°F to 165° F(-23° C to 74° C)
6）All aluminum construction, except retaining plate and tooling plate (steel)
7）NPTF ports
8）Flexible port and cushion locations

FEATURES

1）Competitive interchangeability with NFPA Aluminum cylinders.
2）Solution to specific applications where piston rotation is not acceptable.
3）Wide bore size and stroke range.
4）Achieve longer cylinder life with a larger wear band than competitive cylinders.
5）Easy to mount with over 9 mounting styles available.
6）Easy fitting capabilities with a wide range of standard fittings and rod ends.
7）Equipped for magnetic position detectors.
8）Innovative dual rod design provides precision positioning and linear movement.
9）Ideal for a multitude of high-tech applications.
