ASCO 美國阿斯卡

ASCO選型 numatics-series-5599

Fieldbus Electronics and I/O Capable
Direct solenoid and solenoid air pilot actuated
Conforms to ISO standards 5599/2 & 15407-2
AC or DC
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

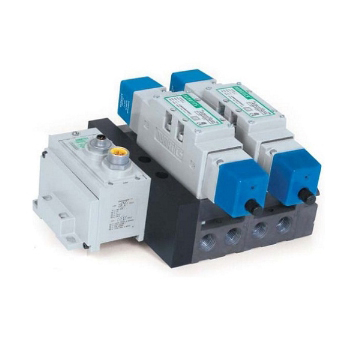

Pneumatic Valve - ISO Valve - 4 Way: 5/2, 5/3 - Numatics Series 5599/2 (Size 2)
Solenoid Pilot and Direct Solenoid Valve - Manifold - Multipin-Fieldbus - 3/8, 1/2

Numatics ISO series valves are high speed, heavy duty valves, designed for general service on all types of automation. Valves comply with ISO standard 5599/2 for valve unit to base interchangeability. Direct solenoid and solenoid pilot actuated models available. They are true multi-purpose valves and employ the patented Numatics spool and sleeve assembly.

Standard Specifications:
1）Cv:
2）5599/2-1: 1.3
3）5599/2-2: 2.9
4）5599/2-3: 5.3
5）15407-2, 18mm: 0.56
6）15407-2, 26mm: 1.2
Port Sizes:
1）5599/2-1: 1/4 & 3/8 NPTF
2）5599/2-2: 3/8 & 1/2 NPTF
3）5599/2-3: 1/2 & 3/4 NPTF
4）15407-2, 18mm: 1/8 threaded, 1/4 push in, 6mm, 8mm
5）15407-2, 26mm: 1/4, 3/8, 8mm, 10mm
6）5 ported, 4-way, 2 and 3 position, spool & sleeve
Flow Capacity:
1）5599/2-1: 60.1 SCFM @ 80 PSIG / 1280 NI/m @ 6 bar
2）5599/2-2: 134 SCFM @ 80 PSIG / 2857 NI/m @ 6 bar
3）5599/2-3: 245 SCFM @ 80 PSIG / 5222 NI/m @ 6 bar
4）Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
5）Pilot Pressure Range: 15 to 125 PSIG / 1 to 8.6 bar
6）Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
Features:

1）Fieldbus Electronics and I/O Capable
2）Direct solenoid and solenoid air pilot actuated
3）Conforms to ISO standards 5599/2 & 15407-2
4）AC or DC
