ASCO 美國阿斯卡

ASCO選型 numatics-series-l1

Solenoid pilot or air pilot actuated
DIN plug-in solenoid and plug connector with indicator light
Unlubricated or lubricated service
In-line or manifold mounted
產品描述：美國ASCO是一家主要生產和銷售流體控制閥以及氣動控制元件的跨國公司，具有100多年的生產技術經驗，在全球擁有超過30家工廠，為客戶提供超過23,000種的流體控制產品。
在線訂購

產品描述服務承諾訂貨流程溫馨提示

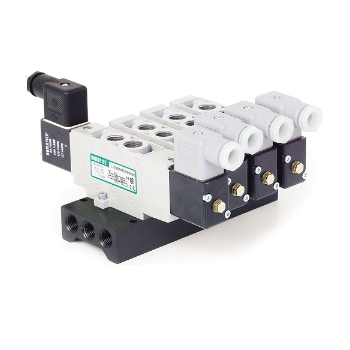

Pneumatic Valve - Line Mounted - 4 Way: 5/2, 5/3 - Numatics Series L1
Solenoid Pilot - Air Pilot and Mechanical Valve - In-Line or Manifold - Discrete - 1/4, 3/8

The L1 Series air valves offer speed and high flow capacity in a compact design. They are available either with solenoid pilot or air pilot actuation. The L1's slim design (.875" body width) is ideal for inline mounting, while it may also be mounted on one piece extruded manifolds from 2 to 12 stations. A 12 station L1 manifold is only 14.11 inches wide.

Standard Specifications:

1）Cv: 1.0
2）Port Sizes: 1/8, 1/4 NPTF & G
3）5 ported, 2 and 3 position, 4-way, spool & sleeve
4）Flow Capacity: 46 SCFM @ 80 PSIG / 985 NI/m @ 6 bar
5）Main Valve Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
6）Pilot Pressure Range (Internal & External): 14.5 to 150 PSIG / 1 to 10 bar
7）Temperature Range (Ambient):
8）Solenoid Pilot Actuated: -10°F to +115°F / -23°C to +46°C
9）Air Pilot Actuated: -10°F to +150°F / -23°C to +66°C
Features:

1）Solenoid pilot or air pilot actuated
2）DIN plug-in solenoid and plug connector with indicator light
3）Unlubricated or lubricated service
4）In-line or manifold mounted
