BACCARA 以色列

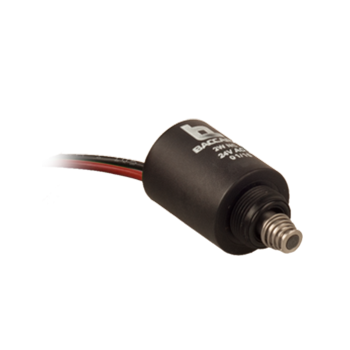

BACCARA 以色列G75-O | AC/DC Operator 2W, 3W NC, NO

BACCARA已成為自動化產品制造和產品專業化市場的領導者
Baccara Geva Ltd自動化控制于1964年成立于基布茲GEVA在以色列耶斯列谷
Baccara空氣閥、氣缸、電磁閥和用于工業，農業和灌溉的尼龍管等產品領域
BACCARA電磁閥空氣閥氣缸，GEM-SOL、GEVA 80、GEVA 75、GEVA 65、GEVA 60、截止氣缸操作閥
產品描述：G75-O | AC/DC Operator 2W, 3W NC, NO BACCARA產品以色列電磁閥施肥電磁閥水力驅動閥 BACCARA控制器氣缸空氣閥 BACCARA截止閥
在線訂購

產品描述服務承諾訂貨流程溫馨提示

G75-O | AC/DC Operator 2W, 3W NC, NO
Orifice size: 0.8 – 3.0 mm
Tube Material: St.St
Assembly: Screw 3/4″ UNEF to valve body. Max. tightening torque: 2 N/m.

Function 2 Way, 3 Way NC, NO
Orifice size 2 Way : No orifice
3 Way : See table
Pressure range (bars) See solenoid valve performances
Temperature range Fluid : 5oC to 50oC (no freezing)
Ambient : -10oC to 50oC
Materials in contact
with media
Housing:
Reinforced Nylon 66
Plunger & pole:
Passivated Stainless Steel AISI 430F
Rubber Seals:
EPDM
Encapsulate:
Polyurethane
Spring:
Stainless Steel AISI 300 series
Media Air, water, oil *
Threads on operator tube G1/8" or 1/8" NPT female to connect exhaust,
muffler etc
Operator assembly By manually screwing 3/4" UNEF to valve body.
? Max. tightening torque : 2 N/m
Electrical connection Lead wires 35 cm, 18 AWG (0.75mm2
)
* other lengths are available
Coil voltage ? Voltage and power consumption - see table
? All Baccara coil voltages are ± 10% of nominal
Standard protection class IP66
