BACCARA 以色列 G80-C | Added-on Manifold

BACCARA已成為自動化產品制造和產品專業化市場的領導者
Baccara Geva Ltd自動化控制于1964年成立于基布茲GEVA在以色列耶斯列谷
Baccara空氣閥、氣缸、電磁閥和用于工業，農業和灌溉的尼龍管等產品領域
BACCARA電磁閥空氣閥氣缸，GEM-SOL、GEVA 80、GEVA 75、GEVA 65、GEVA 60、截止氣缸操作閥
產品描述：G80-C | Added-on Manifold BACCARA產品以色列電磁閥施肥電磁閥水力驅動閥 BACCARA控制器氣缸空氣閥 BACCARA截止閥
在線訂購

產品描述服務承諾訂貨流程溫馨提示

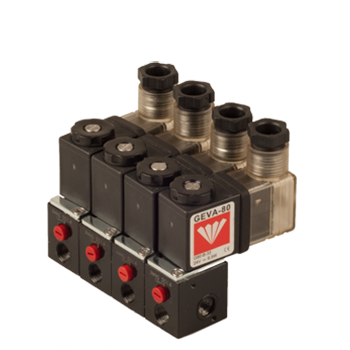

G80-C | Added-on Manifold
Ports size: 1/8″ BSP, NPT
Orifice size: 1.0 – 1.6 mm
Manual override: Plastic
Body material: Mazak

Function 2 Way, 3 Way NC
Orifice size See table
Ports size 1/8" BSP & NPT
Pressure range
? See table
? Valves for pressure higher than 12 bar
cannot be supplied with manual override.
Kv (l/min) See table
Temperature range Fluid : -10oC to 80oC (no freezing)
Ambient : -10oC to 50oC
Assembly
You can assemble your own manifold by
adding segments. A set of two units can be
connected by using two designated screws.
For the first "stand" a different kit of screws
is used.
Materials in contact
with media
Manual override:
Plastic
Main Valve:
Mazak
Solenoid Operator:
Brass, Stainless Steel AISI 300 & 400 series
Seals:
NBR, FPM (Viton®), EPDM
Media Air, water, oil
Coil voltage ? Voltage and power consumption - see table
? All Baccara coil voltages are ± 10% of nominal
Standard protection class IP65 with connector
