BACCARA 以色列 GEM-C | Chem-Sol 1/4″ 2W NC, NO

BACCARA已成為自動化產品制造和產品專業化市場的領導者
Baccara Geva Ltd自動化控制于1964年成立于基布茲GEVA在以色列耶斯列谷
Baccara空氣閥、氣缸、電磁閥和用于工業，農業和灌溉的尼龍管等產品領域
BACCARA電磁閥空氣閥氣缸，GEM-SOL、GEVA 80、GEVA 75、GEVA 65、GEVA 60、截止氣缸操作閥
產品描述：GEM-C | Chem-Sol 1/4″ 2W NC, NO BACCARA產品以色列電磁閥施肥電磁閥水力驅動閥 BACCARA控制器氣缸空氣閥 BACCARA截止閥
在線訂購

產品描述服務承諾訂貨流程溫馨提示

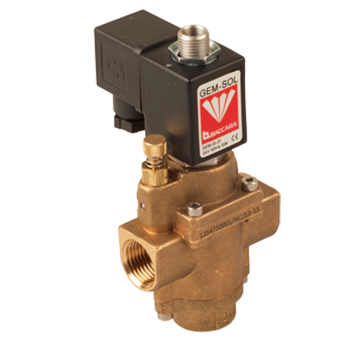

GEM-S | 1/4″-1″ 2W NC, NO
Ports size: 1/4″ – 1″ BSP & NPT
Orifice size: 8.0 – 25.0 mm
Manual override: Slot, Knob
Body material: Brass, St.St

Function 2 Way NC, NO
Ports size 1/4", 3/8", 1/2", 3/4", 1" BSP & NPT
Pressure range
See table
* Minimum pressure differential of
0.3 or 0.5 is required
Kv (l/min) See table
Temperature range Fluid : -10oC to 80oC (no freezing)
Ambient : -10oC to 50oC
Materials in contact
with media
Manual override:
NC/NO - Brass screw
NOa* - manual override is not available
*pressure is supplied through the base
Main Valve:
Brass, Stainless Steel AISI 316
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR, FPM (Viton®), EPDM
Coil voltage ? Voltage and power consumption - see table
? All Baccara coil voltages are ± 10% of nominal
Standard / Certification
? UL 429
* Available on selected models only.
Please contact our technical sales
department for details.
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)
