GENERAL DETAILS

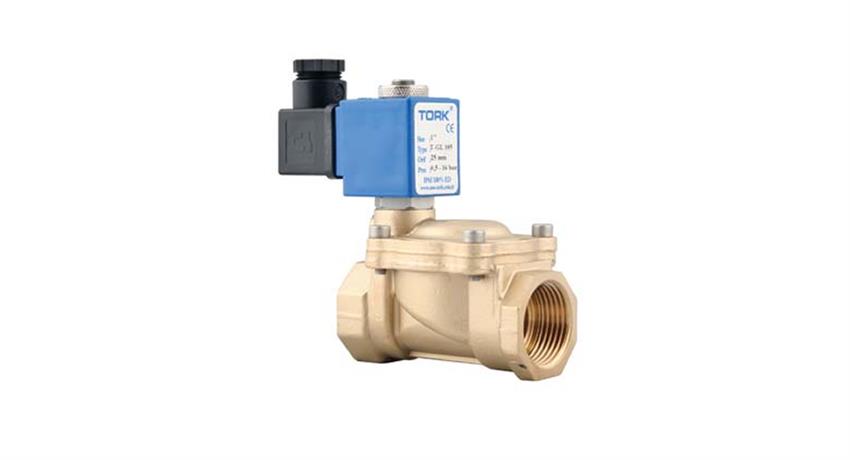

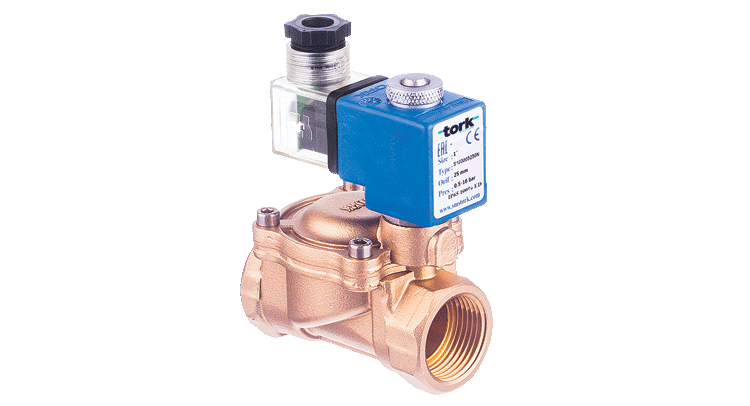

S1030 (TORK-GL) Series General Purpose Solenoid Valve ,Full Orifice , Normally Closed

S1031 (TORK-GLN) Series General Purpose Solenoid Valve ,Full Orifice , Normally Open

Application	:	Air, water, gas
Size	:	3/8" … 3" BSP (on request NPT)
Pressure	:	0,35 bar … 12 bar / 1,5 … 16 bar
Tube and international part	:	Stainless Steel
Body	:	Brass, steel casting or plastic
Seal	:	NBR, on request EPDM
Temperature	:	.-10°C…80 °C
Position	:	Normally Closed
Coil Voltage	:	230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC
Protection Class	:	IP65 and Exproof models

SPECIFICATION

Valve Type / Order No	Connection Size	Orifice Size (mm)	Pressure (bar)		KV lt/ min	Fluid Temperature		Seal	Weight (kg)
Valve Type / Order No	Connection Size	Orifice Size (mm)	Min	Max	KV lt/ min	Min	Max	Seal	Weight (kg)
S1030.02	3/8"	12,5	0,35	16	48	-10	80	NBR	0,68
S1030.03	1/2"	12,5	0,35	16	65	-10	80	NBR	0,64
S1030.04	3/4"	20	0,5	16	120	-10	80	NBR	0,66
S1030.05	1"	25	0,5	16	170	-10	80	NBR	0,8
S1030.06	1 1/4"	46	0,5	12	390	-10	80	NBR	2,65
S1030.07	1 1/2"	46	0,5	12	460	-10	80	NBR	2,55
S1030.08	2"	46	0,5	12	580	-10	80	NBR	2,98
S1030.09	21/2"	72,8	1	6	1266	-10	80	NBR	6
S1030.10	3"	85,4	1	6	2333	-10	80	NBR	10,3

Valve Type / Order No	Connection Size	Orifice Size (mm)	Pressure (bar)		KV lt/ min	Fluid Temperature		Seal	Weight (kg)
Valve Type / Order No	Connection Size	Orifice Size (mm)	Min	Max	KV lt/ min	Min	Max	Seal	Weight (kg)
S1031.02	3/8"	12,5	0,35	12	48	-10	80	NBR	0,69
S1031.03	1/2"	12,5	0,35	12	65	-10	80	NBR	0,66
S1031.04	3/4"	20	0,5	12	120	-10	80	NBR	0,67
S1031.05	1"	25	0,5	12	170	-10	80	NBR	0,81
S1031.06	1 1/4"	46	0,5	10	390	-10	80	NBR	2,66
S1031.07	1 1/2"	46	0,5	10	460	-10	80	NBR	2,56
S1031.08	2"	46	0,5	10	580	-10	80	NBR	2,99
