GENERAL FEATURES

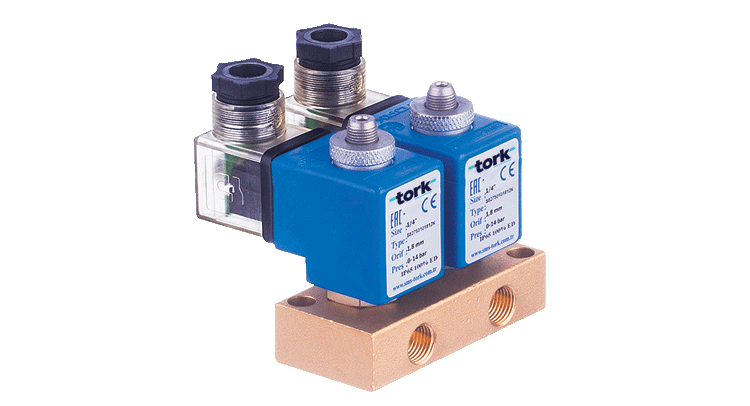

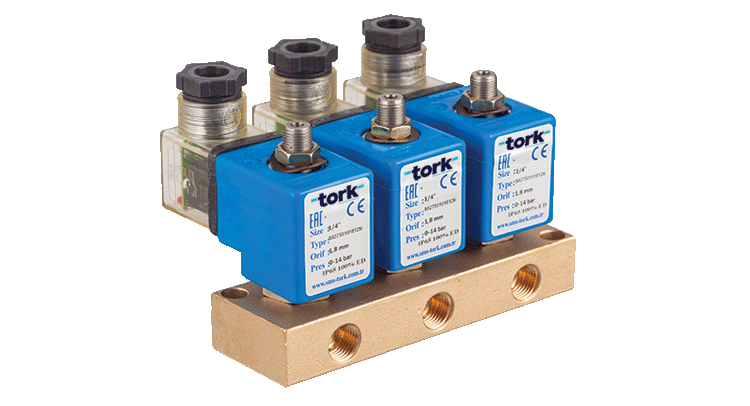

? TORK series S8275 direct acting group solenoid valves are 3/2 way normally closed.
? Suitable for non-aggressive liquids (water, light oil (2E) etc... ), gaseous fluids
(air, inert gases etc...)
? Working Temperature: -1O 0C/ +80 0C
? Don't require any differential pressure
? Compact and low weight valve enabling easy and quick installation
? High reliability, quality and performance; long life, corrosion resistance
? Wide pressure ratings, range of flow rate and orifice options
? Ideal for the automatic control of media in a wide range of applications .
? On request; 1,8 - 3 - and 4 mm orifice and high flow rate
? TORK solenoid valves satisfy relevant 97/23/EC, Pressure Equipment
Directive PED) and 2006/95/EEC Low Voltage Directive (LVD).
? Coils interchangeable
? Solenoid valves must be used with filtred fluids.
? Solenoid valve can be mounted in any position without affecting
operation; vertical with coil upwards preferred.
? Standard pipe connection is G (BSP) (ISO 228-1) and on request;
other pipe connections are available (NPT (ANSI 1.20.3))
∷
