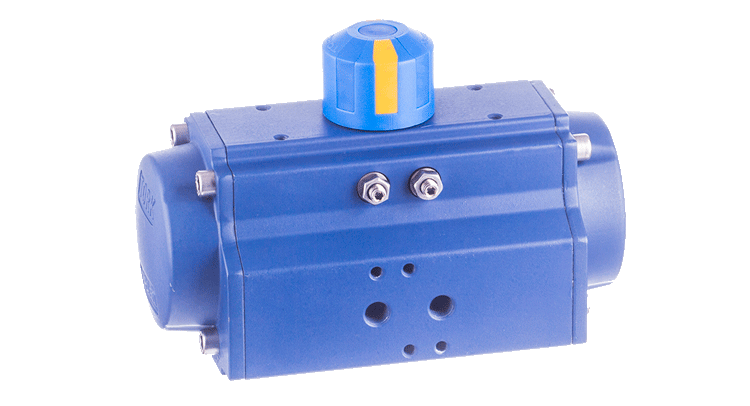

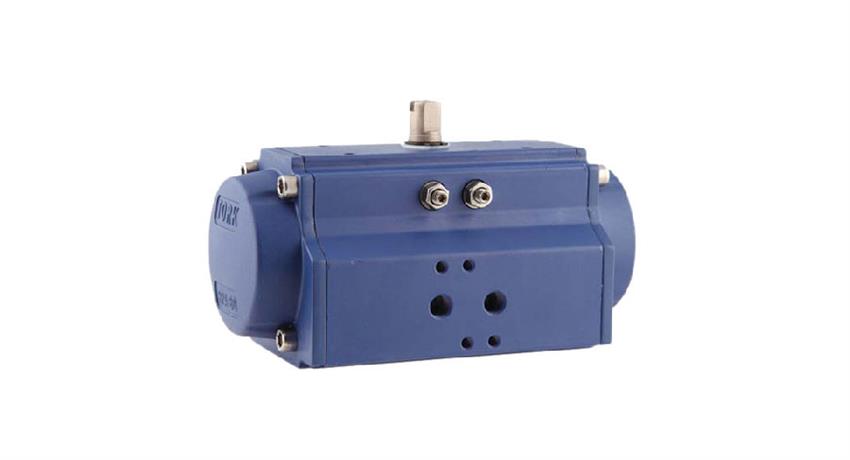

| Application | : | Ball Valve, Butterfly Valve, Plug Valve, Dampers on-off / proportional control | |||||||||
| Size | : | RA-TF 32 DA … RA-TF 350 DA | |||||||||
| Supply Pressure Air | : | 4 - 8 bar | |||||||||
| Output Tork Value | : | 9 Nm … 5162 Nm | |||||||||
| Body | : | PTFE Coated Extruded Aluminium / Cast Aluminium (Optional Exproof Certificated) | |||||||||
| Caps and Pistons | : | Die cast Aluminium | |||||||||
| Temperature | : | -20oC…80oC, optional -50oC…80oC | |||||||||
| Valve Connection | : | ISO 5211 / DIN3337 standard | |||||||||
| Limit Switch Connection | : | Namur standard, VDI / VDE3845 | |||||||||
| Positioner Connection | : | Namur standard, VDI / VDE3845 | |||||||||

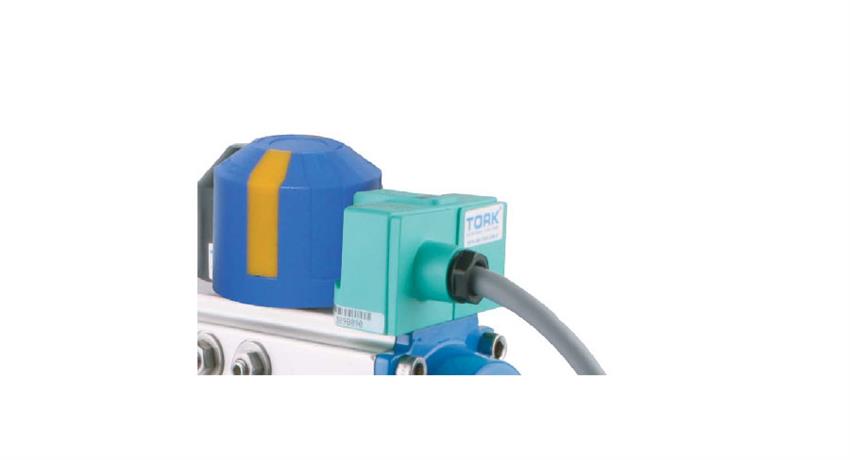

| Solenoid Valve Connection | : | Namur standard, VDI / VDE3845 | |||||||||
| Stroke Adjustment | : | Both directions open and close positions ( ±5%) | |||||||||
| Change to Single Acting | : | Add springs | |||||||||
| Order No | Torque Value (6 bar) | Nm | Valve Connection ISO5211 | Open- close time (sn) |
| TORK-RA-TF 32 DA | 9 | Nm | F03 | 0,1....0,1 |
| TORK-RA-TF 40 DA | 15,8 | Nm | F03/F04 | 0,22...0,26 |
| TORK-RA-TF 60 DA | 39 | Nm | F04/F05/F07 | 0,27....0,33 |
| TORK-RA-TF 80 DA | 103,7 | Nm | F05/F07 | 0,39...0,48 |
| TORK-RA-TF 100 DA | 168,7 | Nm | F07/F10 | 0,52....0,63 |
| TORK-RA-TF 120 DA | 318,6 | Nm | F07/F10 | 0,95.....1,15 |
| TORK-RA-TF 160 DA | 765 | Nm | F10/F14 | 2,60....2,30 |
| TORK-RA-TF 200 DA | 1500 | Nm | F14/F16 | 3,40....3,20 |
| TORK-RA-TF 270 DA | 3042,65 | Nm | F16 | 4,3...4,05 |
| TORK-RA-TF 350 DA | 5162 | Nm | F16 | 5,20....4,90 |
