| Application | ||||||||||||
| Water, Air, Steam, Gas, natural gas, Chemicals, Petroleum products, Food, Pharmaceutical products, Sterilization, Water treatment, Dyeing, Cleaning plants, Aggressive gases and liquids, Vacuum application, Oil, Petrol, Alcohol, Hydraulic liquids, Salt solutions, Organic solvents, Acids |
| Advantage of TORK Pneumatic Piston Valves | ||||||||||||
| Less pressure drop than the globe valves | ||||||||||||
| Short open-close time | ||||||||||||
| High flow rate | ||||||||||||
| Body and actuator in AISI 316 stainless steel, precision casting | ||||||||||||
| Flanged and welding connection available on request |

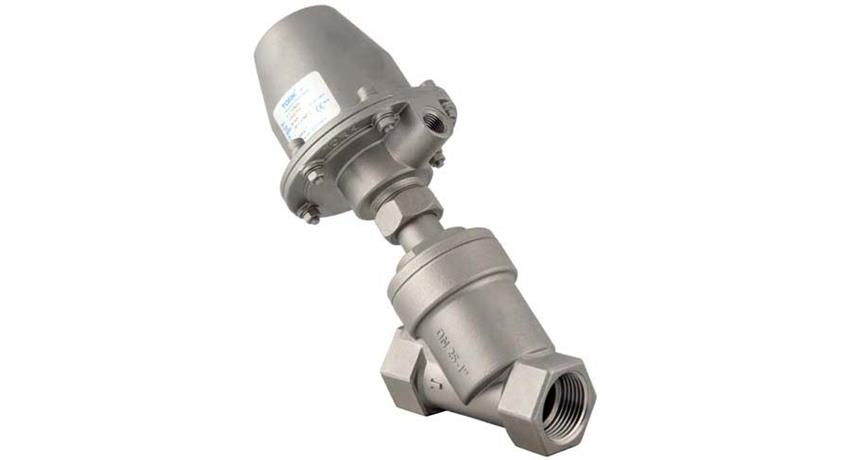

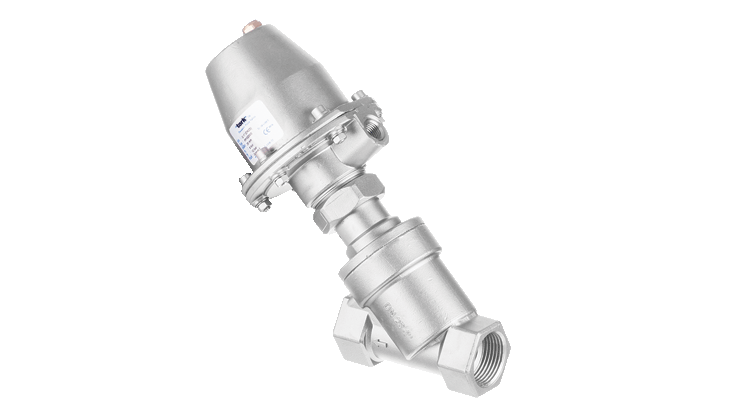

| Type | : | Pneumatic Actuated Angle Seat, Piston Valve | |||||||||
| Connection | : | Screwed G (BSP) , 1/2"...2" | |||||||||
| Function | : | Normally Closed | |||||||||
| Working Temperature | : | .-10 … +180°C | |||||||||
| Max. Operating Pressure | : | 16 bar | |||||||||
| Recommended Control Air Supply | : | 4-6 bar | |||||||||
| Air Supply Connection | : | 1/4" G | |||||||||
| Body | : | All body AISI 316 stainless steel | |||||||||
| Sealing Material | : | PTFE (optional Viton, EPDM) | |||||||||
| On Request | : | NPT screwed connection | |||||||||
| Way | : | 2/2 way | |||||||||
