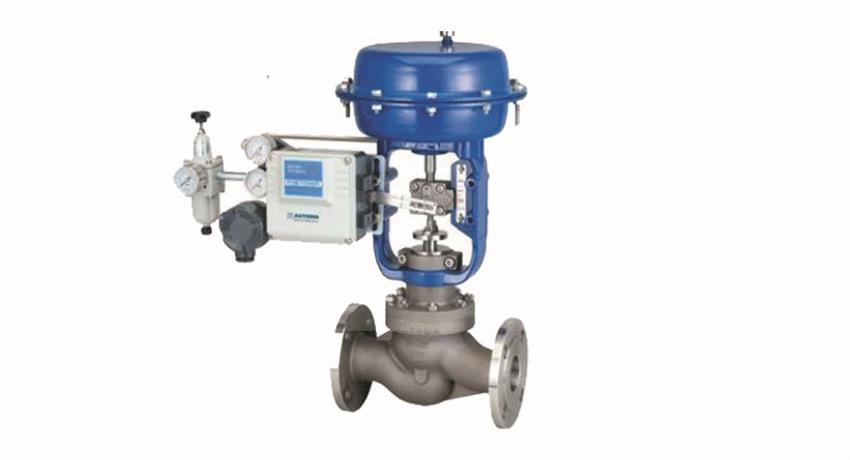

SMS-TORK 土耳其 TORK-LV 3000 PROPORTIONAL PNEUMATIC CONTROLLED

SMS-TORK產品選型產品報價 技術支持售后服務
SMS-TORK是一家土耳其公司生產工業控制閥和測量控制設備
SMS-TORK產品土耳其電磁閥氣動執行器氣動角度閥座閥脈沖閥電動執行器
產品描述：土耳其Sms-TorkSms-Tork電磁閥、Sms-Tork比例閥、Sms-Tork球閥、Sms-Tork蝶閥、Sms-Tork閘閥、Sms-Tork除塵閥、Sms-Tork限位開關、Sms-Tork限位盒
在線訂購

產品描述服務承諾訂貨流程溫馨提示

GENERAL DETAILS

Type	TORK - LV 3000 Serie
Application	Hot Oil, Steam,Water, air,oil etc.
Body	Standard: PN40
	K: Carbon steel, P: stainless steel body, S: Sfero mould
Size	NW15.....NW150
Temperature	200°C
Connection	Flanged
Pneumatic Control pressure	2 bar 4 bar
Seat	AISI 316
Plug	AISI 316
Seal	Spring head, PTFE - V-Ring
Proportional Control	Positioner EPL serie, or SSL Serie Lineer Positioner

TECHNICAL SPECIFICATION

LV-3000.K Series Corbon Steel Body,
PN40, Pneumatic Controlled Globe Valves 2 Way, (Proportional Valve Types)

Size	Type Number
NW15	TORK-LV3000.K015
NW20	TORK-LV3000.K020
NW25	TORK-LV3000.K025
NW32	TORK-LV3000.K032
NW40	TORK-LV3000.K040
NW50	TORK-LV3000.K050
NW65	TORK-LV3000.K065
NW80	TORK-LV3000.K080
NW100	TORK-LDV905.K0100
NW150	TORK-LDV905.K0150

Positioner EPL serie, or SSL Serie Lineer Positioner

Input signal : 4-20 mA or 3-15 psi

Positioner type: Elektro mechanic or smart type positioner

PN40 Valve Flanged 8 holes.

LV3000.P Series Stainless Steel Body
PN40, Pneumatic Controlled Globe Valve 2 Way, (Proportional Control Type Valve)

Size	Type Number
NW15	TORK-LV3000.P015
NW20	TORK-LV3000.P020
NW25	TORK-LV3000.P025
NW32	TORK-LV3000.P032
NW40	TORK-LV3000.P040
NW50	TORK-LV3000.P050
NW65	TORK-LV3000.P065
NW80	TORK-LV3000.P080
NW100	TORK-LDV905.P0100
NW150	TORK-LDV905.P0150

LV3000.S Series Sfero Moulding Body
PN40, Pneumatic Controlled Globe Valve 2 Way, (Proportional Control Type Valve)

Size	Type Number
NW15	TORK-LV3000.S015
NW20	TORK-LV3000.S020
NW25	TORK-LV3000.S025
NW32	TORK-LV3000.S032
NW40	TORK-LV3000.S040
NW50	TORK-LV3000.S050
NW65	TORK-LV3000.S065
NW80	TORK-LV3000.S080
NW100	TORK-LDV905.S0100
NW150	TORK-LDV905.S0150
