| Control Type | : | On-off (option proportional ) | ||||
| Power Supply | : | 220 V AC, (on request 110 V AC, 24 V DC) | ||||
| On-Off Time | : | 13 / 14 sn (50/60Hz) | ||||
| Output Torque | : | 40 Nm, 60 Nm | ||||
| Koruma S?n?f? | : | IP67 | ||||
| Ambient Temperat?re | : | .-20°C …70°C | ||||
| Optional | : | LCU Local Control Unit , PIU potentiometer ,CPT Current Position Transmitter | ||||
|
TORK-KV 905 Ball Valve Details |
||||||
| Body | : | AISI 316 SS | ||||
| Connection sizes | : | DN15…DN100 | ||||
| Actuator ion | : | REA 40 (DN15) , REA 60 (DN20 , DN 32), REA 80(DN40,DN50), REA 150 (DN65, DN 80) ,REA 200 (DN100) | ||||
| Operation | : | 2/2 Way | ||||
| O-ring | : | PTFE | ||||
| Working Pressure | : | PN63 | ||||
| Working Temperature | : | -40°C …180°C | ||||
|

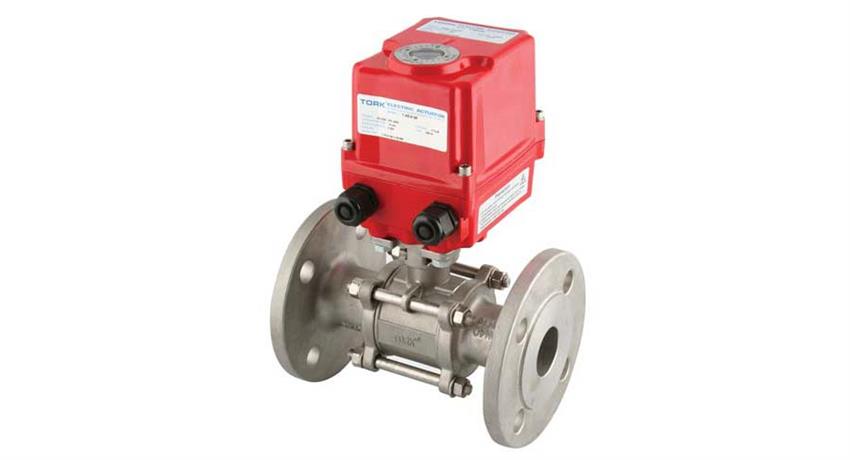

TORK-EAV 905 Series Electric Actuated Stainless Steel , Flanged Ball Valves, 2/2 WAY |
| DN | Connection Sizes | Code No | Way | Pressure | Temperature | ISO Connection |
| DN15 | 1/2" | EAV905.15 | 2/2 | 0-40 bar | -40°C …180°C | F03 |
| DN20 | 3/4" | EAV905.20 | 2/2 | 0-40 bar | -40°C …180°C | F03 |
| DN25 | 1" | EAV905.25 | 2/2 | 0-40 bar | -40°C …180°C | F03 /F04 |
| DN32 | 11/4" | EAV905.32 | 2/2 | 0-40 bar | -40°C …180°C | F04 /F05 |
| DN40 | 11/2" | EAV905.40 | 2/2 | 0-25 bar | -40°C …180°C | F04 /F05 |
| DN65 | 21/2" | EAV905.65 | 2/2 | 0-25 bar | -40°C …180°C | F05 |
| DN80 | 3" | EAV905.80 | 2/2 | 0-25 bar | -40°C …180°C | |
| DN100 | 4" | EAV905.100 | 2/2 | 0-25 bar | -40°C …180°C | |
|
TORK-EAV 905P Series Proportional Control Electric Actuated Stainless Steel , Flanged Ball Valves |
| DN | Connection Sizes | Code No | Way | Pressure | Temperature | ISO Connection |
| DN15 | 1/2" | EAV905P.15 | 2/2 | 0-40 bar | -40°C …180°C | F03 |
| DN20 | 3/4" | EAV905P.20 | 2/2 | 0-40 bar | -40°C …180°C | F03 |
| DN25 | 1" | EAV905P.25 | 2/2 | 0-40 bar | -40°C …180°C | F03 /F04 |
| DN32 | 11/4" | EAV905P.32 | 2/2 | 0-40 bar | -40°C …180°C | F04 /F05 |
| DN40 | 11/2" | EAV905P.40 | 2/2 | 0-25bar | -40°C …180°C | F04 /F05 |
| DN65 | 21/2" | EAV905P.40 | 2/2 | 0-25bar | -40°C …180°C | F05 |
| DN80 | 3" | EAV905P.40 | 2/2 | 0-25bar | -40°C …180°C | |
| DN100 | 4" | EAV905P.40 | 2/2 | 0-25bar | -40°C …180°C |
