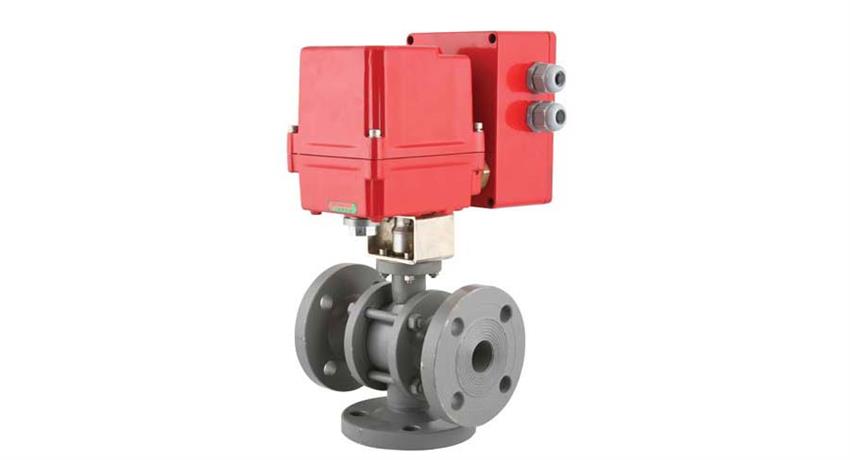

SMS-TORK 土耳其 TORK-EAV 908 ELECTRIC ACTUATED CARBON STEEL BALL VALVE

SMS-TORK產品選型產品報價 技術支持售后服務
SMS-TORK是一家土耳其公司生產工業控制閥和測量控制設備
SMS-TORK產品土耳其電磁閥氣動執行器氣動角度閥座閥脈沖閥電動執行器
產品描述：土耳其Sms-TorkSms-Tork電磁閥、Sms-Tork比例閥、Sms-Tork球閥、Sms-Tork蝶閥、Sms-Tork閘閥、Sms-Tork除塵閥、Sms-Tork限位開關、Sms-Tork限位盒
在線訂購

產品描述服務承諾訂貨流程溫馨提示

GENERAL DETAILS

Operation	:	On-off (optional proportional except REA 40 &REA 80 )
Power Supply	:	220 V AC, (on request 24 V DC, 380 VAC)
On-Off Time	:	12sn....34sn (50/60Hz)
Output Torque	:	40 Nm…30 Nm
Protectional Class	:	IP67
Working Pressure	:	.-20°C …70°C
ISO Connection	:	ISO5211standart F03/F05/F07
Optional	:	LCU Local Control Unit , PIU potentiometer ,CPT Current Position Transmitter
TORK-KV 908 Ball Valve Details
Body	:	Full Bore, Carbon Steel , 3 pcs body, Flanged
Connection Sizes	:	DN15…DN200
actuator Selection	:	REA 40 (DN15) , REA 60 (DN20... DN 40),REA 80 (DN 50, DN65) ,REA150 (DN80,DN100), REA 200 (DN125), REA 600(DN150),REA1200 (DN 200)
Operation	:	3/2 Way
O-ring	:	PTFE
Pressure	:	PN16, PN40
Working Temperature	:	-30°C …180°C
Working Pressure	:	PN 40 bar(DN15..DN50 ) , 16 bar(DN65…DN200)

TECHNICAL SPECIFICATION

TORK-EAV 908 On-Off Electric Actuated Carbon Steel Ball Valve, 3/2 way Flanged

DN	Connection Size	Order no	Way	Pressure	Temperature	ISO Connection
NW15	1/2"	EAV908.15	3/2	0-40 bar	-30..180 C	F03
NW20	3/4"	EAV908.20	3/2	0-40 bar	-30..180 C	F03
NW25	1"	EAV908.25	3/2	0-40 bar	-30..180 C	F03 /F04
NW32	11/4"	EAV908.32	3/2	0-40 bar	-30..180 C	F04 /F05
NW40	11/2"	EAV908.40	3/2	0-40 bar	-30..180 C	F04 /F05
NW65	21/2"	EAV908.65	3/2	0-16 bar	-30..180 C	F05
NW80	3"	EAV908.80	3/2	0-16 bar	-30..180 C
NW100	4"	EAV908.100	3/2	0-16 bar	-30..180 C
NW125	5"	EAV908.125	3/2	0-16 bar	-30..180 C
NW150	6	EAV908.150	3/2	0-16 bar	-30..180 C

TORK-EAV 908P Electric Actuated Carbon Steel Ball Valve, 3/2 way Flanged

DN	Connection size	Order NO	Way	Pressure	Temperature	ISO Connection
NW15	1/2"	EAV908P.15	3/2	0-40 bar	-30..180 C	F03
NW20	3/4"	EAV908P.20	3/2	0-40 bar	-30..180 C	F03
NW25	1"	EAV908P.25	3/2	0-40 bar	-30..180 C	F03 /F04
NW32	11/4"	EAV908P.32	3/2	0-40 bar	-30..180 C	F04 /F05
NW40	11/2"	EAV908P.40	3/2	0-16 bar	-30..180 C	F04 /F05
NW65	21/2"	EAV908P.65	3/2	0-16 bar	-30..180 C	F05
NW80	3"	EAV908P.80	3/2	0-16 bar	-30..180 C
NW100	4"	EAV908P.100	3/2	0-16 bar	-30..180 C
NW125	5"	EAV908P.125	3/2	0-16 bar	-30..180 C
NW150	6	EAV908P.150	3/2	0-16 bar	-30..180 C
