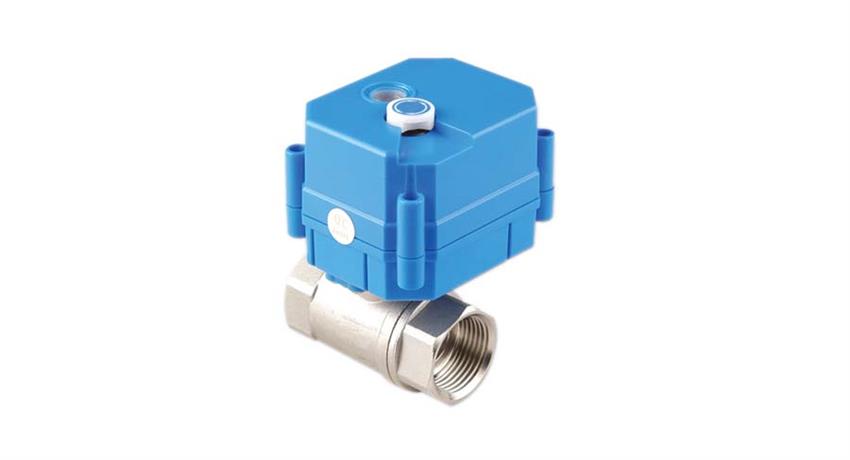

SMS-TORK 土耳其 TORK-S9190 MINI MOTORIZED BALL VALVE

SMS-TORK產品選型產品報價 技術支持售后服務
SMS-TORK是一家土耳其公司生產工業控制閥和測量控制設備
SMS-TORK產品土耳其電磁閥氣動執行器氣動角度閥座閥脈沖閥電動執行器
產品描述：土耳其Sms-TorkSms-Tork電磁閥、Sms-Tork比例閥、Sms-Tork球閥、Sms-Tork蝶閥、Sms-Tork閘閥、Sms-Tork除塵閥、Sms-Tork限位開關、Sms-Tork限位盒
在線訂購

產品描述服務承諾訂貨流程溫馨提示

GENERAL DETAILS

S9190 Series / Electric Motorised Zone Valve

Usage Areas	:	Heating,Cooling ,Air Conditioning Systems, Water Purification Systems,Chemicals Process
		In automation system,when small size valve need, ?f the fluid is particles or viscous so you can
		recommend this mini motorised valve replace to solenoid valves.
Applications	:	Working in 0 bar pressure (If the Input pressure low or the systems which fluid move by itself)
Size	:	1/4'',3/8'',1/2'',3/4'',1'',11/2''
Body	:	standart : Stainless Steel On request: Brass Body
Way	:	2/2 way , 3/2 way
Temparature	:	20°C …80°C water,hot water
Working Voltage	:	220V AC ,standart
Optional 1	:	24V DC or AC
Optional 2	:	On request :5V,12V,110V AC/DC
Open/Close Time	:	5-7 seconds

TECHNICAL SPECIFICATIONS

2/2 Way Stainless Steel 220V 50Hz Mini Motorised Ball Valve
Type No	Valve Size	Power Supply	Control Type	Pressure	Temparature	Open/Close	Weight
S9190.01.220	1/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,26
S9190.02.220	1/2''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,37
S9190.03.220	3/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
S9190.04.220	1''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52

24 V AC /DC Motorised 2/2 Way Stainless Steel Body with Ball Valve
Type No	Valve Size	Power Supply	Control Type	Pressure	Temparature	Open/Close	Weight
S9190.01.220	1/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,26
S9190.02.220	1/2''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,37
S9190.03.220	3/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
S9190.04.220	1''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52

220 V 50Hz Motorised Valve 3/2 Way Stainless Steel Body with Ball Valve
Type No	Valve Size	Power Supply	Control Type	Pressure	Temparature	Open/Close	Weight
S9190.01.220	1/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,26
S9190.02.220	1/2''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,37
S9190.03.220	3/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
S9190.04.220	1''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52

24 V AC /DC Motorised 3/2 Way Stainless Steel Body with Ball Valve
Type No	Valve Size	Power Supply	Control Type	Pressure	Temparature	Open/Close	Weight
S9190.01.220	1/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,26
S9190.02.220	1/2''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,37
S9190.03.220	3/4''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
S9190.04.220	1''	220V AC	On/Off	10 Bar	0°C -100°C	5 Seconds	0,52
