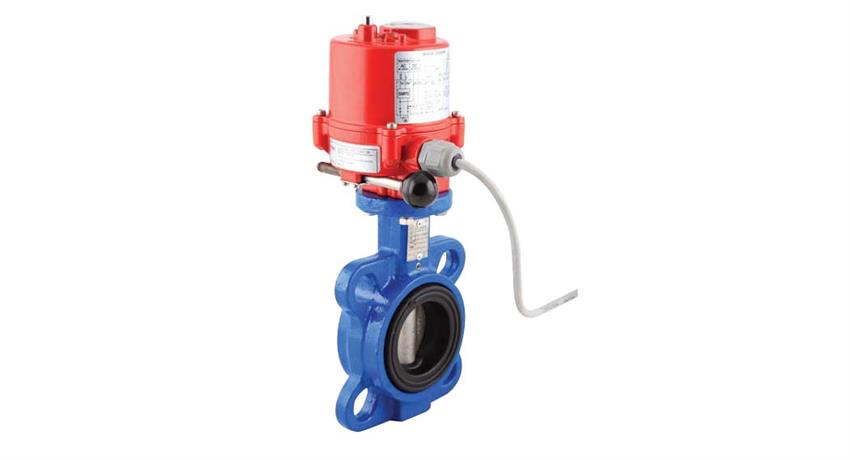

SMS-TORK 土耳其 TORK-EAV 806 ELECTRIC ACTUATED VITON BUTTERFLY VALVE

SMS-TORK產品選型產品報價技術支持售后服務
SMS-TORK是一家土耳其公司生產工業控制閥和測量控制設備
SMS-TORK產品土耳其電磁閥氣動執行器氣動角度閥座閥脈沖閥電動執行器
產品描述：土耳其Sms-TorkSms-Tork電磁閥、Sms-Tork比例閥、Sms-Tork球閥、Sms-Tork蝶閥、Sms-Tork閘閥、Sms-Tork除塵閥、Sms-Tork限位開關、Sms-Tork限位盒
在線訂購

產品描述服務承諾訂貨流程溫馨提示

GENERAL DETAILS

ACTUATOR:

Materials

Steel, aluminium alloy, al-bronze, polycarbonate.

Torques Output

40 Nm … 60 Nm

Enclosure

Weatherproof enclosure IP67, NEMA 4 and 6

Travel Angle

90° ±10° (0° … 110°)

Manuel Override

Declutching mechanism (8 cycles open and close)

Power Supply

220V AC, 1PH (on request 110V AC / 24V DC), (0,4A … 0,19A)

Motor

Squirrel caged inducation, reversible

Limit Switches

2 x open / close, SPDT, 250 V AC, 10A rating (on request additional +2 switches)

Ambient Temp.

.-20°C … 70°C (except option electronic board)

Cable Connection

2 PG 13,5 fittings

Flange Connection

ISO5211 standard (F03/F05/F07)

Open and Close Time

12 - 14 seconds

TORK-KV.W Butterfy Valve

Body

Body: GG25 Epoxy or Rilsan coated, stainless steel and ISO5211 standard actuator flange connection or interconnection

Size

NW25" ….. NW600"

Body Type

Wafer type

Disc

Stainless steel, on request: GG25 epoxy coated

Seat

VITON

Pressure

PN10, PN16

Temperature

.-30 … 205°C

TECHNICAL DETAILS

TORK-EAV 806 Electric Actuated Wafer Butterfly Valve (1120 Series)

Connection Size	Order No	Disc	Seat	Pressure	Temperature	ISO Connection
NW50	EAV806.50.AC	AISI 316 SS	FKM	PN16	-30..205 C	F03
NW65	EAV806.65.AC	AISI 316 SS	FKM	PN16	-30..205 C	F03
NW80	EAV806.80.AC	AISI 316 SS	FKM	PN16	-30..205 C	F03 /F04
NW100	EAV806.100.AC	AISI 316 SS	FKM	PN16	-30..205 C	F04 /F05
NW125	EAV806.125.AC	AISI 316 SS	FKM	PN16	-30..205 C	F04 /F05
NW150	EAV806.150.AC	AISI 316 SS	FKM	PN16	-30..205 C	F05
NW200	EAV806.200.AC	AISI 316 SS	FKM	PN16	-30..205 C
NW250	EAV806.250.AC	AISI 316 SS	FKM	PN16	-30..205 C
NW300	EAV806.300.AC	AISI 316 SS	FKM	PN16	-30..205 C
NW350	EAV806.350.AC	AISI 316 SS	FKM	PN10 /PN16	-30..205 C
NW400	EAV806.400.AC	AISI 316 SS	FKM	PN10 /PN16	-30..205 C
NW 450	EAV806.450.AC	AISI 316 SS	FKM	PN10 /PN16	-30..205 C
NW500	EAV806.500.AC	AISI 316 SS	FKM	PN10 /PN16	-30..205 C
NW600	EAV806.600.AC	AISI 316 SS	FKM	PN10 /PN16	-30..205 C
