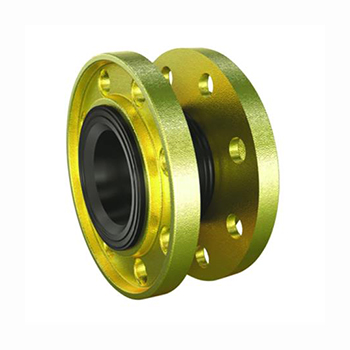

| Rubber Expansion Joints are compliant and resilient elements that help to reduce tensile strenght between piping system caouthouc based materials are more resilent than metal , fiberglass or plastic ones , therefore they have been deployed in construction and hydraulic sector. | |||||||||
| Advantage | : | Isolation noise of and vibration | |||||||
| Reduction of pipe tension | |||||||||
| Absorb of the thermal expansion | |||||||||
| equalization of assembly mismatchings | |||||||||
| Useage Areas | : | Heating , ventilation, airconditioning , shipbuilding industry, booster system ,drinking | |||||||
| Connection Size | : | DN 32 up to DN 700 |
| Pressure (Pmax) | : | PN16 |
| Temperature (Tmax) | : | 100 °C |
| Plastic Fiber | : | Cord Fabric |
| Braid Wire | : | Steel |
| Flange Material | : | Sfero D?küm, Carbon Steel, Stainless Steel(Optional) |
| Rubber Material | : | EPDM, NBR, NEOPREN,Butyl |
| Dilation | : | Axial +15 mm -20 mm, Lateral 15 mm, Angular 10° |
