SMS-TORK 土耳其 NATURALGAS CARBON STEEL BALL VALVES

SMS-TORK產品選型產品報價技術支持售后服務
SMS-TORK是一家土耳其公司生產工業控制閥和測量控制設備
SMS-TORK產品土耳其電磁閥氣動執行器氣動角度閥座閥脈沖閥電動執行器
產品描述：土耳其Sms-TorkSms-Tork電磁閥、Sms-Tork比例閥、Sms-Tork球閥、Sms-Tork蝶閥、Sms-Tork閘閥、Sms-Tork除塵閥、Sms-Tork限位開關、Sms-Tork限位盒
在線訂購

產品描述服務承諾訂貨流程溫馨提示

GENERAL DETAILS

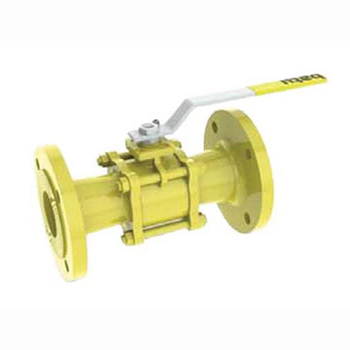

TORK-KV 912F Series Carbon Steel Ball Valve, Flanged Connection,2/2 way(for Naturalgas )
TORK-KV 912D Series Carbon Steel Ball Valve, Threaded Connection,2/2 way(for Naturalgas )
TORK-KV 920F Series Sphero Cast Iron Ball Valve, Flanged Connection,2/2 way(for Naturalgas )
TORK-KV 920F Series Sphero Cast Iron Ball Valve, Threaded Connection,2/2 way(for Naturalgas )

TORK-KV912F SERIES	:	Sphero Cast Iron Body or Carbon Steel Ball Valve,Flange Connection,2/2 way (Naturalgas)
		Handle Type
		ISO 5211 Actuator Mount Head Flange Series

TECHNICAL SPECIFICATION
Usage Areas	:	Water,hot water,steam,pressured air,oils,hydrocarbons,gas
Product Code	:	TORK-KV 907F Flange Connection, TORK-KV907K with Handle Carbon Steel 2/2 way Balll Valve
Body	:	Full Bored, Sphero Cast Iron or Carbon Steel, Three piece, Thread Connection, Flange Connection
Direction	:	2/2 way, mounted with all position and let the fluid for both way
Seal	:	PTFE covered sphere and also Neckle covered with two PTFE seals
Pressure	:	Designed for High Pressure and Low Pressure
Operation Temparature	:	-20°C…..+ 180°C
Operation Pressure	:	PN25,PN 40 bar (NW15……NW250 )
Testing	:	48 Hours testing with 20 bar for all valve

TORK-KV907F.Series 2/2 Way Carbon Steel Bal Valves

Connection Size	Order No	Way	Pressure	Temperature	ISO Connection
NW15	TORK-KV912F.15	2/2	0-16 bar	-30..180 C	F03
NW20	TORK-KV912F.20	2/2	0-16 bar	-30..180 C	F03
NW25	TORK-KV912F.25	2/2	0-16 bar	-30..180 C	F03 /F04
NW32	TORK-KV912F.32	2/2	0-16 bar	-30..180 C	F04 /F05
NW40	TORK-KV912F.40	2/2	0-16 bar	-30..180 C	F04 /F05
NW50	TORK-KV912F.50	2/2	0-16 bar	-30..180 C	F05
NW65	TORK-KV912F.65	2/2	0-16 bar	-30..180 C	Special
NW80	TORK-KV912F.80	2/2	0-416ar	-30..180 C	Special
NW100	TORK-KV912F.100	2/2	0-16 bar	-30..180 C	Special
NW125	TORK-KV912F.125	2/2	0-16 bar	-30..180 C	Special
NW150	TORK-KV912F.150	2/2	0-16 bar	-30..180 C	Special
NW200	TORK-KV912F.200	2/2	0-16 bar	-30..180 C	Special
