GENERAL DETAILS

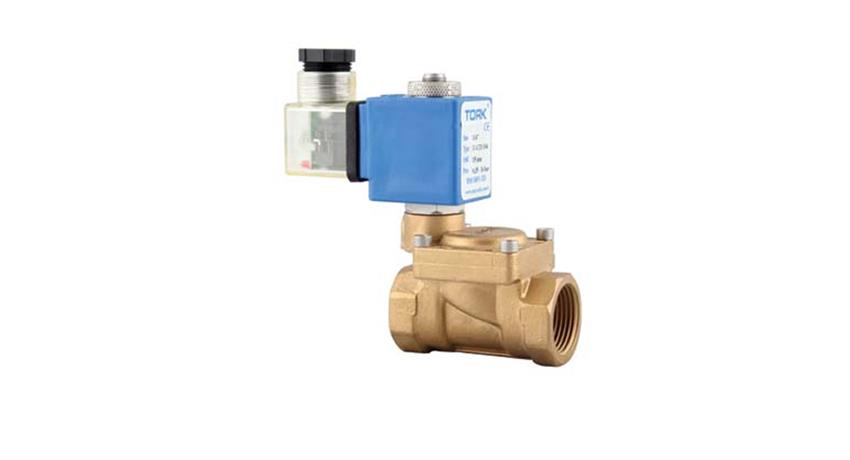

S1040 Series ( TORK-GTD) General Purpose Solenoid Valves & S1041 Normally Open

Application	:	Air, water, gas
Size	:	1/8", 1/2" BSP (on request NPT) 3/8", 1/2" (Pilot Opareted)
Pressure	:	0 bar … 16 bar (orifice), 0,5 … 16 bar
Tube and international part	:	Brass, Stainless Steel
Body	:	Brass
Seal	:	NBR, on request VITON
Temperature	:	.-10°C…80 °C
Position	:	Normally Closed
Coil Voltage	:	230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC
Protection Class	:	IP65 and Exproof models

SPECIFICATION

Valve Type / Order No	Connection Size	Orifice Size (mm)	Pressure (bar)		KV lt/ min	Fluid Temperature		Seal	Weight (kg)
Valve Type / Order No	Connection Size	Orifice Size (mm)	Min	Max	KV lt/ min	Min	Max	Seal	Weight (kg)
S1040.02	3/8"	12,5	0,35	16	45	-10	80	NBR	0,68
S1040.03	1/2"	12,5	0,35	16	65	-10	80	NBR	0,64
S1040.04	3/4"	15	0,35	16	70	-10	80	NBR	0,79
S1040.05	1"	15	0,35	16	85	-10	80	NBR	0,96

Valve Type / Order No	Connection Size	Orifice Size (mm)	Pressure (bar)		KV lt/ min	Fluid Temperature		Seal	Weight (kg)
Valve Type / Order No	Connection Size	Orifice Size (mm)	Min	Max	KV lt/ min	Min	Max	Seal	Weight (kg)
S1041.02	3/8"	12,5	0,35	12	45	-10	80	NBR	0,68
S1041.03	1/2"	12,5	0,35	12	65	-10	80	NBR	0,66
S1041.04	3/4"	15	0,35	12	70	-10	80	NBR	0,8
S1041.05	1"	15	0,35	12	85	-10	80	NBR	0,97
