      SMS-TORK 土耳其

      • SMS-TORK 土耳其 S1050 AND S1051 ( TORK-GD /GDN) GENERAL PURPOSE
      • SMS-TORK 土耳其 S1050 AND S1051 ( TORK-GD /GDN) GENERAL PURPOSE
      SMS-TORK 土耳其 S1050 AND S1051 ( TORK-GD /GDN) GENERAL PURPOSESMS-TORK 土耳其 S1050 AND S1051 ( TORK-GD /GDN) GENERAL PURPOSE

      SMS-TORK 土耳其 S1050 AND S1051 ( TORK-GD /GDN) GENERAL PURPOSE

      • SMS-TORK產品選型 產品報價 技術支持 售后服務
      • SMS-TORK是一家土耳其公司生產工業控制閥和測量控制設備
      • SMS-TORK產品 土耳其 電磁閥 氣動執行器 氣動角度閥座閥 脈沖閥 電動執行器
      • 產品描述:土耳其Sms-TorkSms-Tork電磁閥、Sms-Tork比例閥、Sms-Tork球閥、Sms-Tork蝶閥、Sms-Tork閘閥、Sms-Tork除塵閥、Sms-Tork限位開關、Sms-Tork限位盒
      • 在線訂購
      GENERAL DETAILS

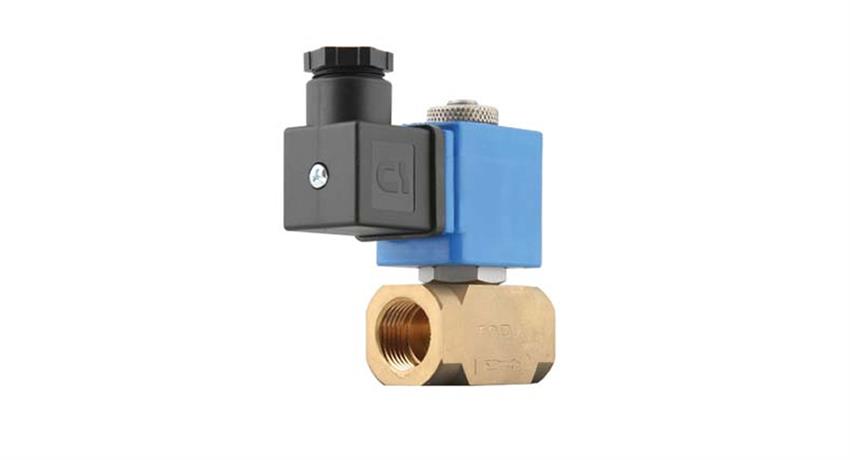

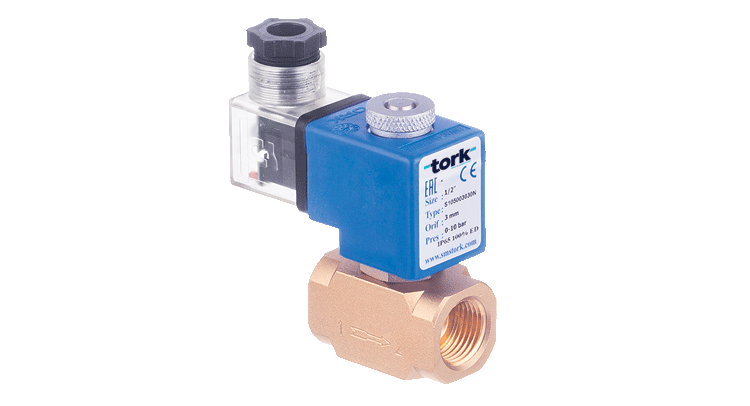

      S1050 Series  ( TORK-GD) General Purpose Solenoid Valves
      S1051 Series  ( TORK-GD) General Purpose Solenoid Valves
      Application : Air, water, gas
      Size : 3/8" … 1" BSP (on request NPT)
      Pressure : 0 bar … 6 bar (orifice)
      Tube and international part : Stainless Steel
      Body : Brass
      Seal : NBR, on request VITON
      Temperature : .-10°C…80 °C
      Position : Normally Closed (on request Normally Open)
      Coil Voltage : 230V, 110V , 48V, 24V , 12V  AC ; 110V , 48V , 24V , 12 V DC
      Protection Class : IP65 and Exproof models


      SPECIFICATION

      Valve Type / Order No Connection Size Orifice Size (mm) Pressure (bar) KV  lt/ min Fluid Temperature Seal Weight (kg)
      Min Max Min Max
      S1050.02.050 3/8" 5 0 7 9,2 -10 80 NBR 0,48
      S1050.02.060 3/8" 6 0 6 11 -10 80 NBR 0,48
      S1050.02.070 3/8" 7 0 5 12,4 -10 80 NBR 0,48
      S1050.02.080 3/8" 8 0 3 13,5 -10 80 NBR 0,48
      S1050.02.090 3/8" 9 0 2 16 -10 80 NBR 0,48
      S1050.02.100 3/8" 10 0 1 19 -10 80 NBR 0,48
      S1050.03.050 1/2" 5 0 7 9,2 -10 80 NBR 0,47
      S1050.03.060 1/2" 6 0 6 11 -10 80 NBR 0,47
      S1050.03.070 1/2" 7 0 5 12,4 -10 80 NBR 0,47
      S1050.03.080 1/2" 8 0 3 13,5 -10 80 NBR 0,47
      S1050.03.090 1/2" 9 0 2 16 -10 80 NBR 0,47
      S1050.03.100 1/2" 10 0 1 19 -10 80 NBR 0,47


      Valve Type / Order No Connection Size Orifice Size (mm) Pressure (bar) KV  lt/ min Fluid Temperature Seal Weight (kg)
      Min Max Min Max
      S1051.03.025 1/2" 2,5 0 10 3,2 -10 80 NBR 0,49
      S1051.05.025 1" 2,5 0 10 3,2 -10 80 NBR 0,49
