SMS-TORK 土耳其

SMS-TORK 土耳其 THDA-ET SERIES HEAVY DUTY PNEUMATIC ACTUATORS

SMS-TORK產品選型產品報價 技術支持售后服務
SMS-TORK是一家土耳其公司生產工業控制閥和測量控制設備
SMS-TORK產品土耳其電磁閥氣動執行器氣動角度閥座閥脈沖閥電動執行器
產品描述：土耳其Sms-TorkSms-Tork電磁閥、Sms-Tork比例閥、Sms-Tork球閥、Sms-Tork蝶閥、Sms-Tork閘閥、Sms-Tork除塵閥、Sms-Tork限位開關、Sms-Tork限位盒
在線訂購

產品描述服務承諾訂貨流程溫馨提示

GENERAL DETAILS

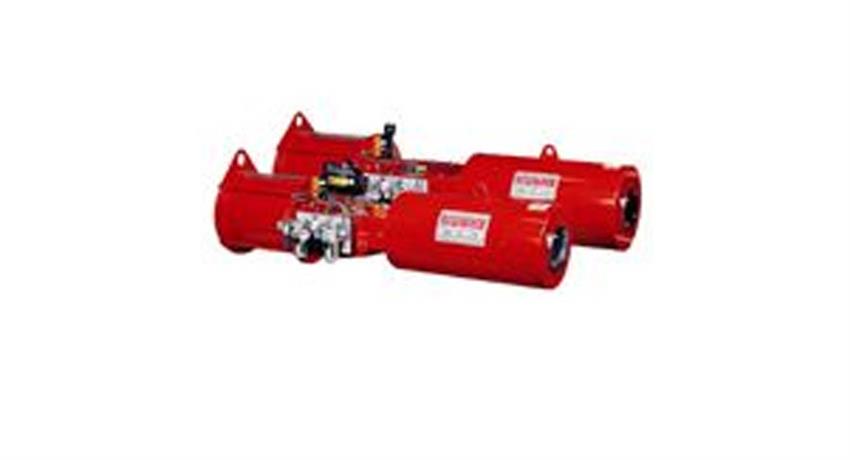

THDA-ET Series Heavy Duty Pneumatic Actuators (Scotch Yoke Type)
Application	:	Heavy industry sector works with Scotch Yoke actautors.
		Oil and oil industry, power plants, chemical processing lines, iron and steel industry,
		Gas pressure reducing stations and storage,
		Water transport lines, dams, ship industry,
		Purification and sewage lines, etc.
Actuator types	:	Scotch Yoke actuator have 3 types

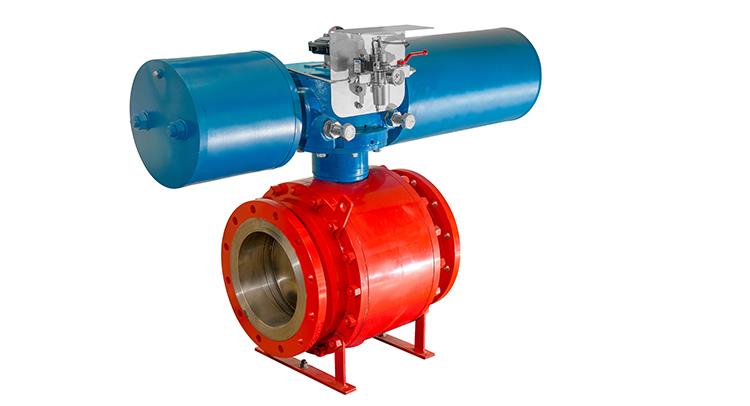

		ET-S / C Series Ball Valve, Butterfly Valve, Plug Valve and for teh other 90-degree rotating mechanism.
		ETL Series is designed for the control of Globe and Gate valves.
		ET-S / C / L Series is produced in our factory with the hydraulic manual override, limit switch box, positioner and air tube.
Certificates	:	EX H 2 GD c NC ATEX , CE0036, PED

SPECIFICATION

Double Acting Series Model No	Working Pressure	Output Torque Value
ETS.40	6 bar	500 Nm
ETS.50	6 bar	1000 Nm
ETS.58	6 bar	1900 Nm
ETS.65	6 bar	3500 Nm
ETS.85	6 bar	9500 Nm
ETS.100	6 bar	14000 Nm
ETS.130	6 bar	35000 Nm
ETS.160	6 bar	40000 Nm
ETS.160W	6 bar	59000 Nm
ETS.200W	6 bar	150000 Nm
ETS.270W	6 bar	250000 Nm

專業制造、專業服務，KUNAG庫納格為你創造更多價值

不斷提升服務質量，精益求精，“真誠的服務”是KUNAG永恒的主題。庫納格嚴格按照 ISO9001-2000 質量體系認證要求，質量嚴格把關，責任到人，確保生產、銷售、服務的健康運行。加強與用戶溝通，竭誠為廣大客戶提供優質產品，至善至美服務，特此我廠做出如下承諾：

產品標準

產品嚴格按照中國 GB、HG 標準和美國 API 等標準設計、制造、驗收。密封面硬度達到國家規定要求，寬度超過國家標準。
